80Mpa 94L/Min Double Stage Pump Rapid High Pressure Hydraulic Pump

Name: 80Mpa 94LMin Double Stage Pump Rapid High Pressure Hydraulic Pump
Brand: Suntech
Price: 1 USD

China 80Mpa 94L/Min Double Stage Pump Rapid High Pressure Hydraulic Pump wholesale

Brand Name : Suntech

Model Number : YBQA-80-03

Certification : ISO9001

Place of Origin : Ningbo, China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 1000 SET/Month

Delivery Time : 7-15days

Packaging Details : Wooden Case

Name : Rapid super high pressure hydraulic pump(Doulbe-stage pump output)

Item No. : 16146A-16144A

Engine Tyde : Gasoline engine/ Diesel engine /Electric engine

Rated Pressure : 80Mpa

Max Oil Pressure : 94 Mpa

Rated Flow high : 94L/Min

Rated Flow low : 1.6-11.02L/min

Weight : 45-65KG

Warranty : 1 year

Contact Now

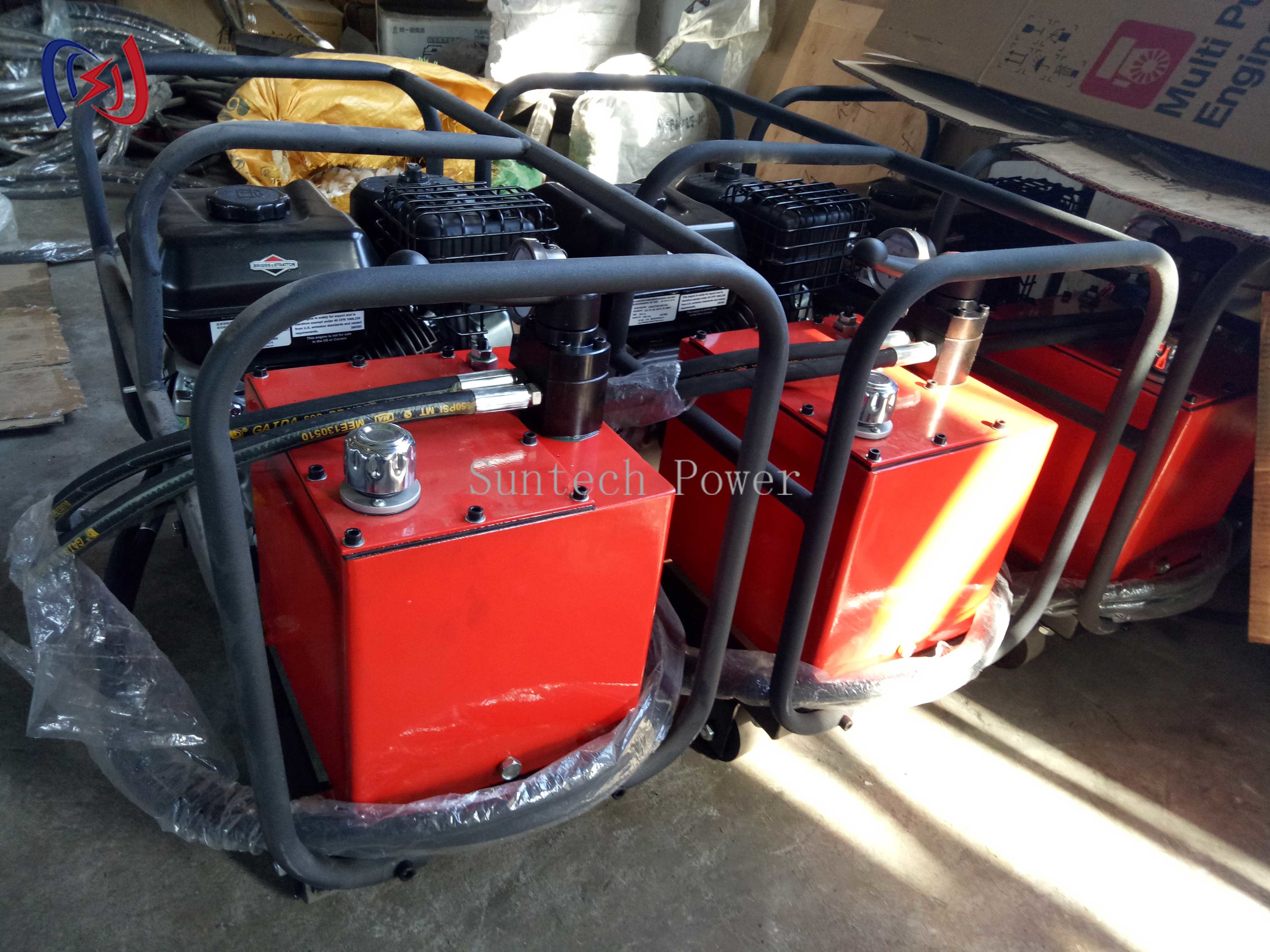

Double-Stage Pump Output Rapid Super High Presure Hydraulic Pump

Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.

Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.

Application

Application of hydraulic pump: to provide power for the cutting tool, the hydraulic compressor, punching machine

and other construction machinery, which is operated in the wild field in electric power, railway, rescue, construction and other industries.

Technical Data

Item number	Model	Engine Tyde	Power	Rated Pressure (MPa)	Max Oil Pressure (MPa)	Rated Flow (L/min)		Weight (kg)
Item number	Model	Engine Tyde	Power	Rated Pressure (MPa)	Max Oil Pressure (MPa)	Hig	Low	Weight (kg)
16146A	YBQA-80-03	Gasoline engine	5.0HP	80	94	2.05	11.02	55
16147A	YBCA-80-03	Diesel engine	4.0HP	80	94	2.05	11.02	65
16144A	YBDA-80-03	Electric engine	3.0KW	80	94	1.6	8	45
