Single Stage Pump Hydraulic Crimping Tools High Pressure Hydraulic Pump 80 Mpa

Name: Single Stage Pump Hydraulic Crimping Tools High Pressure Hydraulic Pump 80 Mpa
Brand: Suntech
Price: 1 USD

Brand Name : Suntech

Model Number : YBQA-80-02

Certification : ISO9001

Place of Origin : Ningbo, China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 1000 SET/Month

Delivery Time : 7-15days

Packaging Details : Wooden Case

Name : Super high pressure hydraulic pump(Single-stage pump output)

Item No. : 16146-16144

Engine Type : Gasoline engine/ Diesel engine /Electric engine

Rated Pressure : 80 Mpa

Max Oil pressure : 94 Mpa

Rated flow high : 1.6L/min

Weight : 45-65KG

Warranty : 1 year

Contact Now

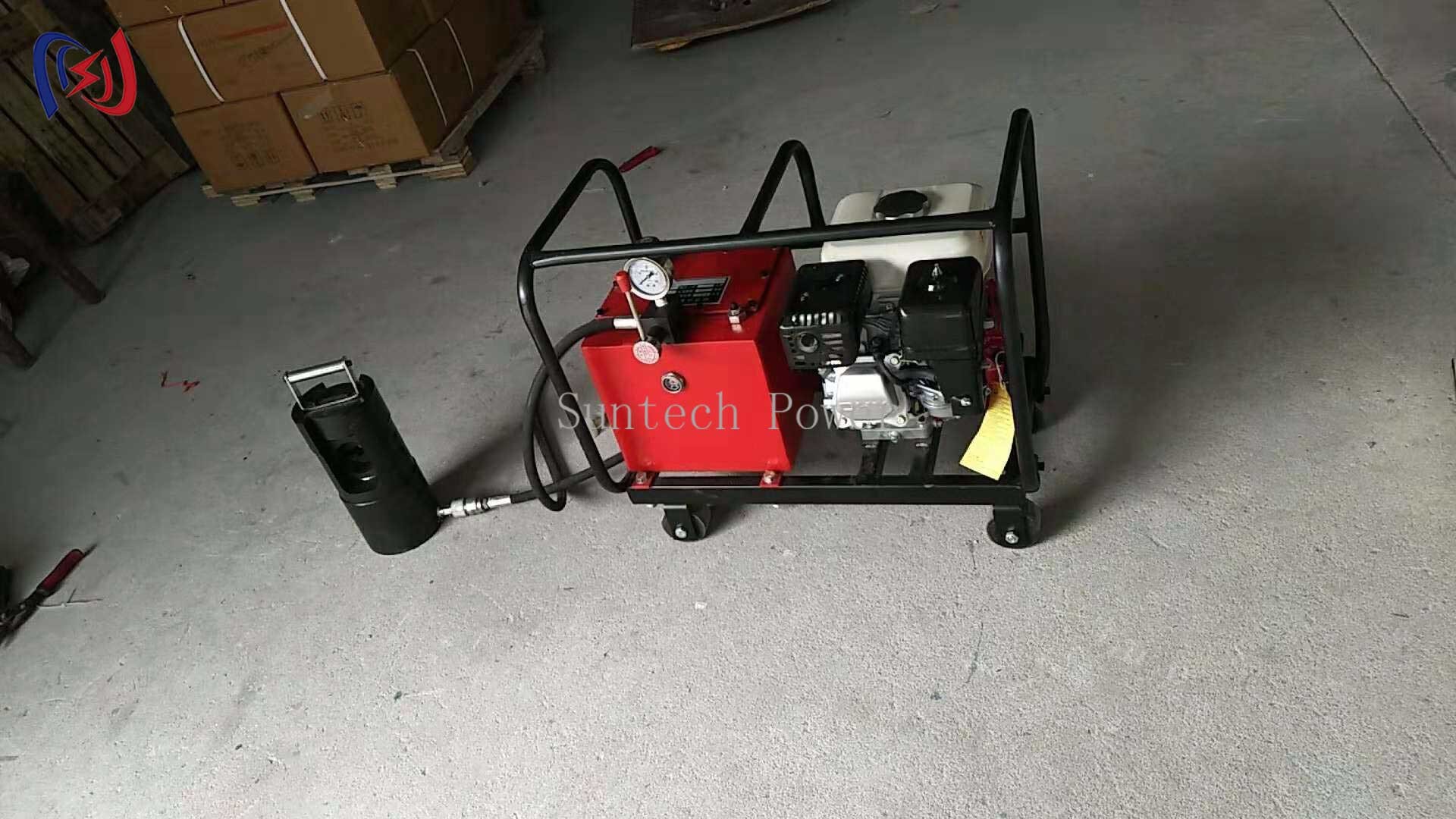

Single-Stage Pump Output Super High Pressure Hydraulic Pump

Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.

Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.

Application

Application of hydraulic pump: to provide power for the cutting tool, the hydraulic compressor, punching machine

and other construction machinery, which is operated in the wild field in electric power, railway, rescue, construction and other industries.

Technical Data

Item number	Model	Engine Tyde	Power	Rated Pressure (Mpa)	Max Oil Pressure (Mpa)	Rated Flow (L/min)		Weight (kg)
Item number	Model	Engine Tyde	Power	Rated Pressure (Mpa)	Max Oil Pressure (Mpa)	Hig	Low	Weight (kg)
16146	YBQA-80-02	Gasoline engine	5.0HP	80	94	1.6	/	55
16147	YBCA-80-02	Diesel engine	4.0HP	80	94	1.6	/	65
16144	YBDA-80-02	Electric engine	1.5KW	80	94	1.6	/	45
